INTRODUCING THE SGM…

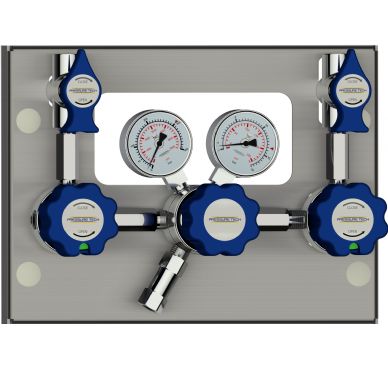

The SGM is a manual changeover manifold, mounted onto a stainless steel panel for inert, reactive, flammable, corrosive, and oxidising gases and gas mixtures, with a maximum purity of 6.0.
They are designed to reduce the incoming supply from one gas cylinder up to a maximum of 300 bar (4,350 psi) inlet pressure to a safe and usable. The gas is then delivered through subsequent piping to the point-of-use.
These panels are found in gas cylinder storage rooms, or close to point-of-use. Typical applications include gas supply to analytical instruments and engine emission testing for automotive industries.
The SGM consists of a pressure regulator, relief valve, and upstream shut-off valves, plus an optional purge valve, and inlet and outlet gauges.
PLEASE CONTACT THE PRESSURE TECH OFFICE IF YOUR ORDER REQUIRES ANY SPECIAL MODIFICATIONS OR REQUIREMENTS.
Manual Changeover Manifold: Gas / Diaphragm / Non-Venting / Max. Inlet: 300 bar (4,350 psi) / Max. Outlet: 50 bar (725 psi) / Cv: 0.1
