INTRODUCING THE SGP…

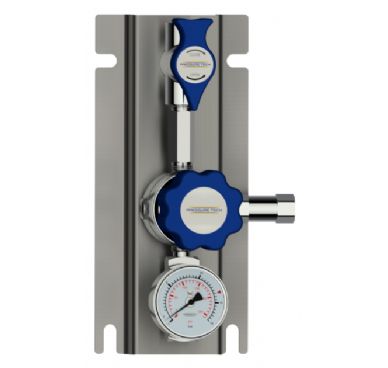

The SGP is a point of use gas manifold, mounted onto a stainless steel panel (as standard), for speciality gases with a maximum purity of 6.0. They are designed to accurately reduce the incoming gas supply from a maximum of 50 bar (725 psi) inlet pressure to a safe and usable level at the point-of-use.
Typical applications include gas supply to analytical instruments and engine emission testing for automotive industries.
The SGP consists of a pressure regulator, and an optional upstream shut-off valve, outlet gauge, and relief valve.
PLEASE CONTACT THE PRESSURE TECH OFFICE IF YOUR ORDER REQUIRES ANY SPECIAL MODIFICATIONS OR REQUIREMENTS.
Point of Use Gas Manifold: Gas / Diaphragm / Non-Venting / Max. Inlet: 50 bar (725 psi) / Max. Outlet: 14 bar (203 psi) / Cv: 0.1
