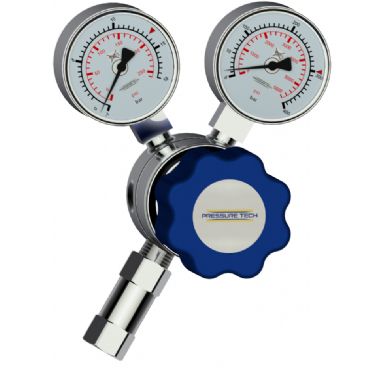

INTRODUCING THE SGL…
The SGL is a line pressure regulator for inert, reactive, flammable, corrosive, and oxidising gases and gas mixtures, with a maximum purity of 6.0. It offers a compact and economical means of reducing line pressure from a maximum of 300 bar (4,350 psi) inlet pressure to a lower usable level for subsequent system equipment.
Typical applications include gas supply to analytical instruments and engine emission testing for automotive industries.
It is available in either a 4-port or 6-port body and can be offered as either a single-stage or two-stage pressure reduction. The two-stage option offers fine control of the outlet pressure.
The SGL consists of a pressure regulator and relief valve, plus optional inlet and outlet gauges on the 6-port configuration and outlet gauge only on the 4-port configuration.
PLEASE CONTACT THE PRESSURE TECH OFFICE IF YOUR ORDER REQUIRES ANY SPECIAL MODIFICATIONS OR REQUIREMENTS.
Line Pressure Regulator: Gas / Diaphragm / Non-Venting / Max. Inlet: 300 bar (4,350 psi) / Max. Outlet: 50 bar (725 psi) / Cv: 0.1
