Leírás

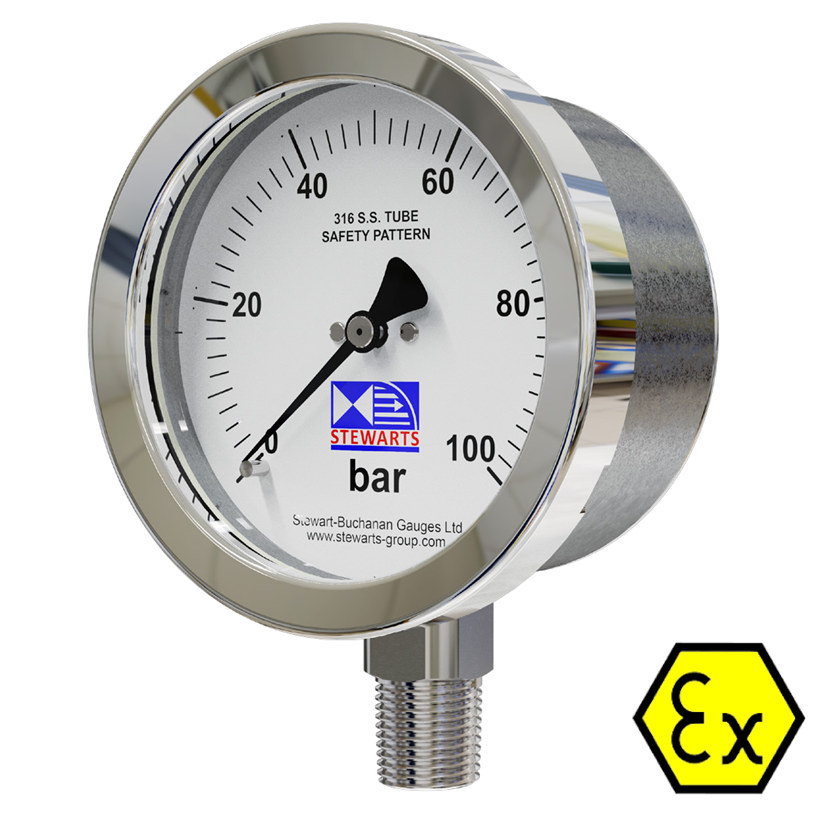

These instruments are designed for explosive atmospheres in food, processing, pharmaceutical, petrochemical industries and conventional power plants.
The STEWARTS pressure gauges are in conformity with the essential Health and Safety Requirements laid down in European Directive 2014/34/EU for Group II,
Category 2G or 2D equipment in the T1…T6 temperature classes, as specified by EN ISO 80079-36:2016 and EN ISO 80079-37:2016 standards and to construction and
safety specifications of EN 837-1/S3 & ASME B40.1. Safety Pattern designation S3 has a blow-out back panel and a solid baffle wall between the pressure element and
the front of the gauge, to protect the operator.
NOT suitable for ZONES 0 and 20.
