INTRODUCING THE 64613 Flanged…

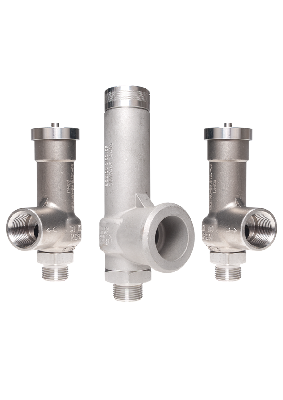

13mm Nominal Bore Enclosed Discharge Safety Relief Valve for Compressed Air & Gases
Flow Rates:
Flow calculated based upon: Air @ 15°C and 1013 mbar and are for guidance only, contact Seetru for help in sizing to your specifications.
Notes:
- The maximum permissible built-up back pressure is 10% of the set pressure
- Stable operation on flows down to 50% of valve-rated capacity
- Relieving pressure is set pressure +10% (0.1 bar below 1.40 bar)
- Reseating pressure is set pressure -10% (0.3 bar minimum)
- Below 1.40 bar g., PED & EAC approved only, above 1.40 barg PED, EAC, ASME, and CRN approved
Approvals:
- Designed in accordance with BS EN ISO-4126-1 & -7
- PED 2014/68/EU (CE)
- PE(S)R UK SI 2016 No. 1105 (UKCA)
- ASME BPVC VIII.1 & XIII (UV)
- CRN
Example Applications:
- Air/gas compressors
- Pressure vessels
- Medical gases/Technical gases
- Refrigeration (including ammonia)
- Thermal relief
- Steam systems
- Hydrogen
